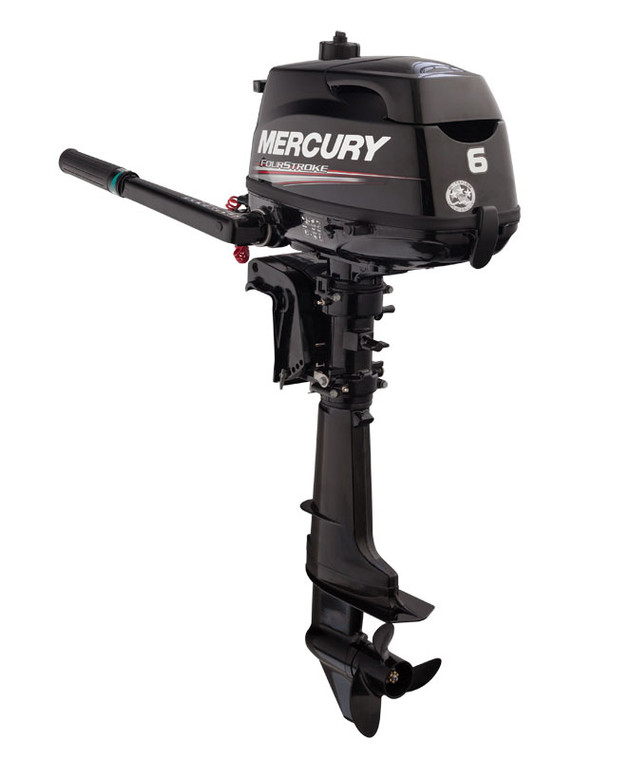

Mercury 6HP Outboard Engine Short Shaft (1FX6201KK) – 4-Stroke Portable

Mercury 6HP 4-Stroke Outboard Engine (1FX6201KK) is a powerful and portable short shaft outboard designed for small boats, inflatables, jon boats, and utility applications.

This Mercury outboard delivers increased power over smaller models while maintaining easy portability and reliable operation. With forward, neutral, and reverse shifting, along with the ability to connect to an external fuel tank, it offers greater control and extended range for a wide variety of on-water uses.



Features:

• 6 HP 4-stroke outboard engine


• Short shaft (15 in / 381 mm) for small boat applications


• Lightweight portable design with durable construction


• Manual start with reliable CDI ignition


• Tiller steering for simple control


• Forward, neutral, and reverse gear shift


• Integrated fuel tank (0.3 gal / 1.1 L) with external fuel shutoff valve


• Compatible with optional remote fuel tank for extended run time


• Water-cooled system with thermostat


• Fuel efficient carbureted system


• Recommended fuel: 87 octane, up to 10 percent ethanol


• Recommended oil: Mercury FourStroke 10W-30


• Dry weight: 57 lbs (26 kg)


• CARB 3-star emissions rating


• Ideal for inflatables, jon boats, utility boats, and small sailboats

Specifications:

• Engine type: 1 cylinder, 2-valve overhead valve


• Displacement: 123 cc (7.5 CID)


• Full throttle RPM: 5000 - 6000


• Gear ratio: 2.15:1


• Bore x stroke: 59 x 45 mm (2.32 x 1.77 in)


• Cooling system: Water-cooled with thermostat


• Exhaust: Through propeller


• Trim positions: 6


• Shallow water trim range: 16 degrees


• Optional alternator: 4A lighting / 2A charging (50W / 25W)


• Color: Phantom Black
