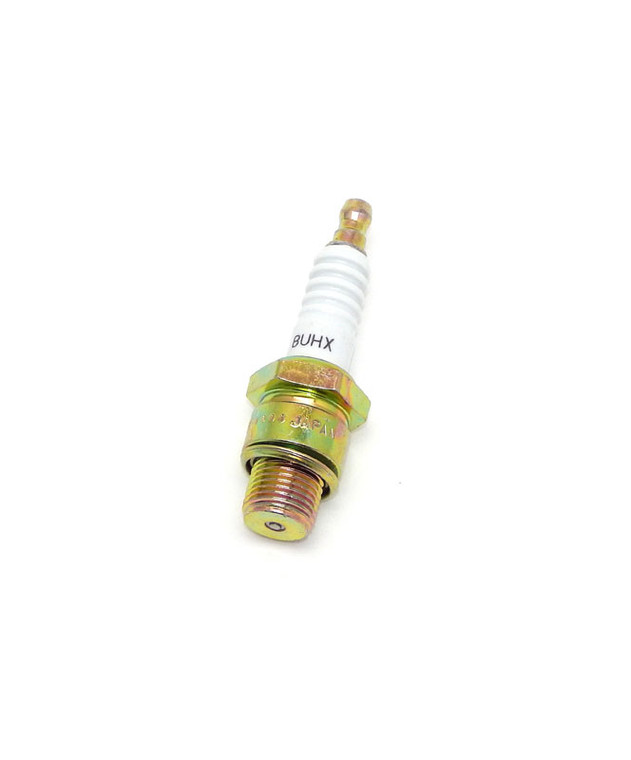

NGK 2522 BUHX Surface Gap Spark Plug
NGK 2522 BUHX Surface Gap Spark Plug.
NGK's Surface Gap Plugs are Nearly Immune to Pre-Ignition, and Usually Require a Special High Energy Ignition System. They Can be Susceptible to Fouling, Especially in Colder Applications, but May be Necessary in High Compression Applications.
Fits Chrysler, Force (U.S. Marine) and Volvo Penta outboard engines.
Specifications:
Shell
Thread Size: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Resistor: No
Reach: 12.7mm (1/2")
Hex Size: 13/16" (21mm)
Terminal Type: Solid
Overall Height: ISO
Gap: .030" (0.75mm)
Center Electrode
Material: Tungsten
Type: Standard
Size: 2.5mm
Projection: Non-Projected
Ground Electrode
Material: Nickel
Type: Surface Discharge
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
Brand: NGK
Heat Range: 12
Features: Booster Gap
NGK's Surface Gap Plugs are Nearly Immune to Pre-Ignition, and Usually Require a Special High Energy Ignition System. They Can be Susceptible to Fouling, Especially in Colder Applications, but May be Necessary in High Compression Applications.
Fits Chrysler, Force (U.S. Marine) and Volvo Penta outboard engines.
Specifications:
| Brand | NGK Spark Plugs |
|---|---|
| Cross Reference / Specs |
