Racor 320R-RAC-02 Fuel Filter Water Separator

SKU:
RAC320R-RAC-02
|
MPN
320R-RAC-02
|
UPC:
706672000101
$123.99 - $1,413.49
Current Stock:
Adding to cart… The item has been added

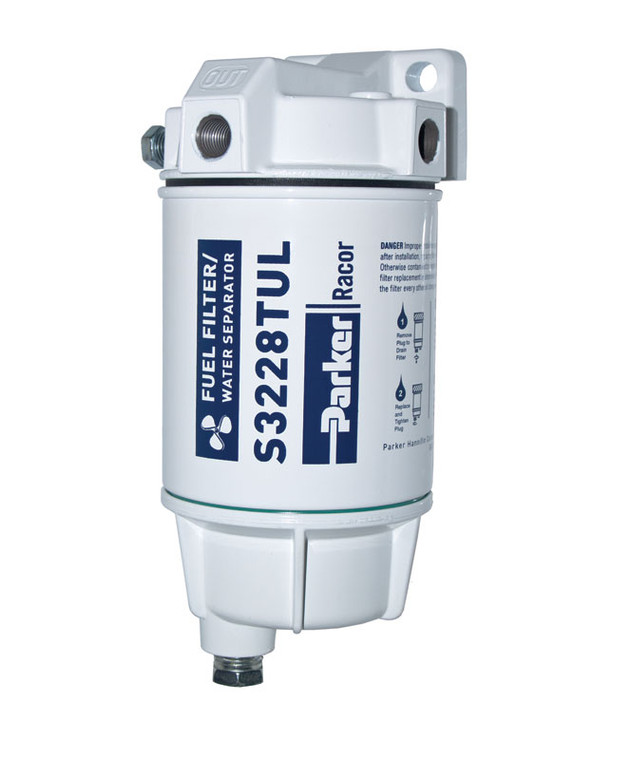

Racor 320R-RAC-02 Fuel Filter Water Separator.

320R-RAC series filters are designed for high-performance applications, which means your engine will perform better than ever with clean, water-free fuel.

Features:
  • UL Listed and USCG approved for inboard marine use

  • Includes 10 micron Aquabloc®II element - S3228TUL

  • Has a 60 GPH (227 LPH) maximum flow rate

  • Has superior corrosion resistance with a electrostatic powder paint coating

  • Includes a 3-port die-cast aluminum mounting head with 1/4”-18 NPTF threads

  • Removes 99% of free water


    • The lower the micron rating, the finer the filtration. Follow your engine manufacturer's recommendation for fuel filter micron rating.

  • S = Secondary/Final 2 micron (Brown)

  • T = Primary or Secondary/Final 10 micron (Blue)

  • P = Primary 30 micron (Red)
    • Brand Parker | Racor Division
    Cross Reference / Specs MALLORY MARINE
  • 9-37881

    • SIERRA MARINE
  • 18-7951


  • Application: Inboard, Outboard
  • Maximum Flow Rate:60 GPH (227 LPH)

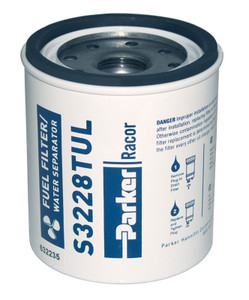

  • Replacement Filter: NON UL RATED 10 Micron = S3227, UL RATED10 micron = S3228TUL, 2 Micron = S3228SUL
  • Replacement Bowl: RK 30473-02
  • Center Threads: 1"-14
  • Port Size:1/4"-18 NPTF
  • Number of Ports: Inlets =2, Outlets = 1
  • Height: 9.3 in. (23.6 cm)
  • Width: 4.0 in. (10.2 cm)
  • Depth: 4.0 in. (10.2cm)
  • Weight (dry): 2.0 lb (0.90 kg)
  • Clean Pressure Drop: 0.61 PSI (4.23 kPa)
  • Maximum Pressure: 7 PSI (0.5 bar)
  • Underbowl Clearance: 1.0 in. (2.5 cm)
  • Water Removal Efficiency: 99 percent
  • Ambient Temperature Range: -40° to +255°F (-40° to +124°C)
  • Maximum Fuel Temperature: 190°F (32°C)
    		•
