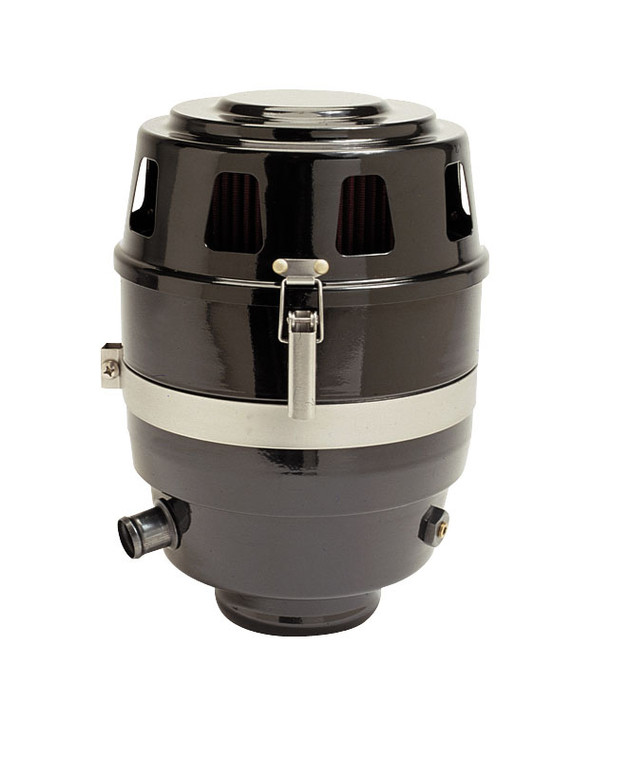

Racor AF M408512 Marine Cartridge Engine Air Filter

SKU:
RACAF-M408512
|
MPN
AF M408512
|
UPC:
012345679673
Our Price: $419.99
Current Stock:
2
Adding to cart… The item has been added
Racor AF M408512 Marine Cartridge Engine Air Filter.

Racor Marine Cartridge Engine Air Filter/Silencers removes contaminants introduced into the air from both outside and inside the vessel.

Features:
  • Max. Air Flow: 800 CFM (378 l/s)

  • Outlet Diameter: 4.0 in. (10.2 cm)

  • Length: 12.5 in. (31.8 cm)

  • Depth: 9.6 in. (24.4 cm)

  • Hose Barb Size: 1.0 in. (2.5 cm)

  • Includes element - AF M8040

  • Washable filter media use Cleaning Kit - AF M82006


    • NOTES:
  • Connect to air intake side of any diesel engine

  • With turbocharged engine, connect to clean air side of turbocharger

  • If you have an existing CCV assembly, the cleaned blow-by exhaust air is ported into the CCV port on the marine air filter
    • Brand Parker | Racor Division
    Cross Reference / Specs

  • Series: AFM
  • Maximum Flow Rate (cfm): 800
  • Maximum Flow Rate (m3/m): 22.7
  • Outlet Size (inch): 4.0
  • Outlet Size (cm): 10.2
  • Application: Marine Engines
  • Weight (lbs): 4.2
  • Weight (kg): 1.9
  • Length (inch): 12.5
  • Length (mm): 31.8
  • Diameter (inch): 9.6
  • Diameter (cm): 24.4
  • Connection Size (inch): 1.0 O.D. hose barb for CCV
  • Connection Size (cm): 2.5 O.D. hose barb for CCV
  • Material: Coated Steel
  • Operating Temperature (F): -40 to +120
  • Operating Temperature (C): -40 to +116
  • Replacement Element: AF M8040
  • Accessory Type: Cleaning Kit AF M82006
    		•
