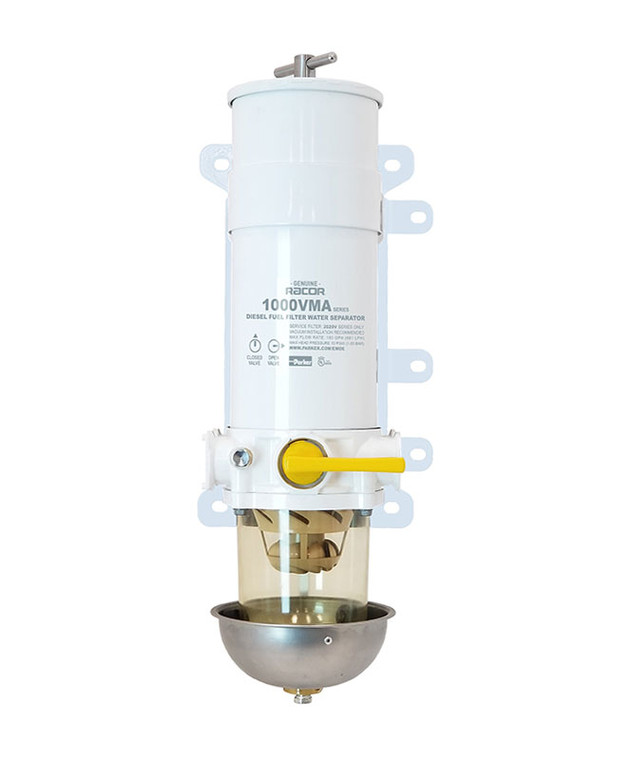

Racor Marine 1000VMA10 Turbine Series Fuel Filter/Water Separator with Shut-Off Valve

SKU:
RAC1000VMA10
|
MPN
1000VMA10
Our Price: $436.99
Current Stock:
4
Adding to cart… The item has been added
Racor Marine 1000VMA10 Turbine Series Fuel Filter/Water Separator with Shut-Off Valve.

1000 Series Fuel Filter Water Separator with 10 Micron filter element. The all new design adds ports, is less restrictive, and improves water separation. Larger ports decrease restriction, and two (2) inlet and two (2) outlet ports, allow installation in any configuration required to meet fuel delivery needs. A Shut-off valve is integrated into each individual unit eliminating the need for up stream valves in the fuel delivery line.

Features:
  • Fuel Type: Rated for Diesel

  • Flow Rate: 180 (gph) 681 (lph)

  • Includes: 10 Micron element - 2020V10

  • Bowl Material: Clear plastic bowl with stainless steel heat deflector shield

  • Port Size: (4) 1-5/16”-12 UN-2B (SAE 1926-1), (2) Port Plugs Supplied, (2) 3/4” NPTF Adapters Supplied

  • Overhead Clearance: 10" - 254(mm)

  • Maximum Working Pressure: 15 psi - 1.03 (bar)


    • The lower the micron rating, the finer the filtration. Follow your engine manufacturer's recommendation for fuel filter micron rating.

  • S = Secondary/Final 2 micron (Brown)

  • T = Primary or Secondary/Final 10 micron (Blue)

  • P = Primary 30 micron (Red)
    • Brand Parker | Racor Division
    Cross Reference / Specs RACOR
  • 1000MA2
  • 1000MA10
  • 1000MA30


    • USE WITH:
  • RK11-2076-01 - T-Handle Lid Kit
  • 2020V2 - Service Filter 2 micron
  • 2020V2LL - Service Filter 2 micron (Long Life)
  • 2020V10 - Service Filter 10 micron
  • 2020V30 - Service Filter 30 micron
  • RK11-2077 Bracket Kit - Includes Bracket, Bolt, Washer, and Nut
  • RK 11-1679 Feed-thru Plug
  • RK11-2078 Vacuum Gauge Port Plug (Metal)
  • RK11-2079 Valve Rebuild Kit
  • RK11-2080 Centrifuge/Baffle/Checkball/Gasket Kit
  • RK 11-1606-1 Bowl Kit
  • RK 20126 - Bowl Plug
  • RK 11734-03 - VMAM Bowl Kit (Metal)
  • RK 20022 - Metal Bowl Plug Kit (VMAM)
  • RK11-2078 - Drain Plug (Metal)
  • RK 11037A-01 - Bowl Ring Kit (For VMA Only - White)
  • RK 11542 - Cap Screw Bowl Fasteners
  • RK 11868 - Heat Deflector Kit (VMA)
  • RK 11-1910 - Drain Plug Kit (VMA)
  • RK11-2083-01 - Mounting Bracket Kit
  • RK 11-1404 - Complete Seal Service Kit
  • RK11-2085 - 900VMA(M)/1000VMA(M) Port Plug & Adapter Kit
  • RK19671 - Stainless Steel T-handle with Vacuum Gauge
  • RK19668 - Vacuum Gauge (30” Hg) - 1/4” NPT back or remote mount
  • RK19667 - Compound Gauge - pressure (15 PSI ) and vacuum (30” Hg)
  • RK 14329 - Water Detection Module - 12 vdc
  • RK 14321 - Water Detection Module - 24 vdc
  • RK30880E - WIF Sensor/Detection Kit - 1/2”-20 UNF
  • RK23191 - WIF Probe - Stainless Steel - 1/2”-20 UNF - 2-wire (VMAM)
  • RK11-1978 - Checkball Spring Kit - For use with Primer Pump Kit 8G
  • RKP1912 - Primer Pump Kit - 12 vdc - Adds 3.25” (8.26 cm) to Height
  • RKP1924 - Primer Pump Kit - 24 vdc - Adds 3.25” (8.26 cm) to Height
    		•
