Racor R24T Fuel Filter Water Separator

SKU:
RACR24T
|
MPN
R24T
|
UPC:
706672000163
$33.99 - $387.49
Current Stock:
Adding to cart… The item has been added

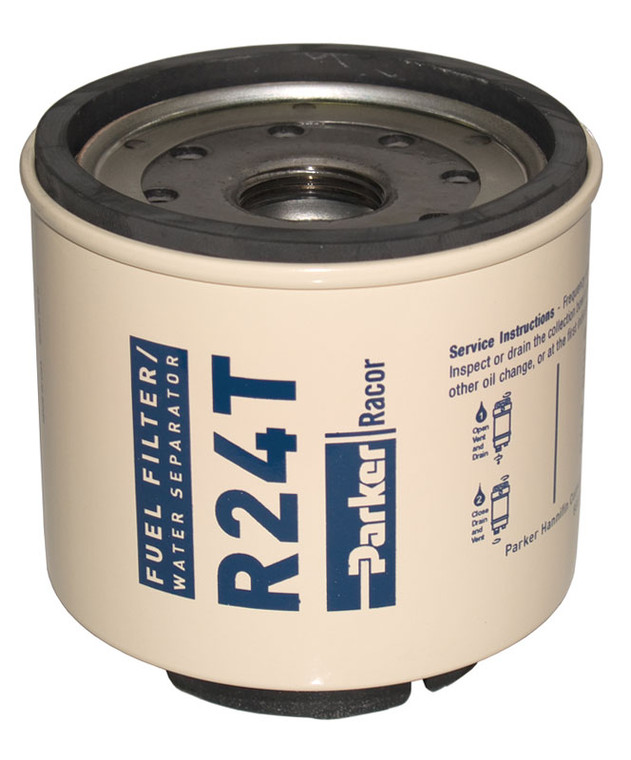

Racor R24T Fuel Filter Water Separator.

A 10 micron element from the 220R old version series uses engineered media to increase the dirt holding capacity and extend filter life.

Features:
  • Fits Racor Series - 220R

  • Micron Rating: 10 micron

  • Includes Upper & Lower gasket - 23241

  • Filters diesel fuels

  • Maximum Fow Rate: 30 GPH (114 LPH)

  • 99% efficient Aquabloc® water repelling filter media


  • The lower the micron rating, the finer the filtration. Follow your engine manufacturer's recommendation for fuel filter micron rating.

  • S = Secondary/Final 2 micron (Brown)

  • T = Primary or Secondary/Final 10 micron (Blue)

  • P = Primary 30 micron (Red)
  • Brand Parker | Racor Division
    Cross Reference / Specs AC-DELCO
  • TP1241
  • TP1242

  • BALDWIN
  • BF1204
  • BF1204-SP
  • BF1205
  • BF1253
  • BK6832

  • BIG A
  • 95211

  • CARQUEST
  • 86211
  • 86426
  • 86698

  • CATERPILLAR
  • 3I-1484

  • DONALDSON
  • P551744

  • FLEETGUARD
  • FS1233
  • FS1233B
  • FS1234

  • FRAM
  • PS6643

  • FORD
  • E7HZ-4N184-A
  • E7HZ-9N184-A

  • HASTINGS
  • FF1037
  • FF1037-SP
  • FF1038
  • FF1038-SP
  • FF1069
  • FF895

  • JOHN DEERE
  • AT81478

  • KRALINATOR
  • FS240

  • LUBER-FINER
  • L3525F
  • LFF8061
  • LK125F

  • MOTORCRAFT
  • FD 3370

  • NAPA
  • 3211
  • 3698
  • 3426

  • OMC
  • 42034746

  • OWATONNA
  • 420-34746

  • PUROLATOR
  • F54562

  • THERMO-KING
  • 11-5726

  • WIX
  • 33211
  • 33414
  • 33426
  • 33698



  • Application: Inboard
  • Fits Racor Series: 220R
  • Fits Racor Bowls: RK 20135, RK 20357
  • Filters diesel fuel
  • Maximum Flow Rate: 30 GPH (114 LPH)
  • Micron Rating: 10
  • Height: 3.5 in. (8.89 cm)
  • Diameter: 3.75 in. (9.52 cm)
  • Center Threads: 1"-14
  • Includes Upper & Lower gasket - 23241
  • Water Removal Efficiency: 99%
  • Operating Temperature -40o to +255oF (-40o to 124oC)
  • Max. Fuel Temp.: 190°F (32°C)
