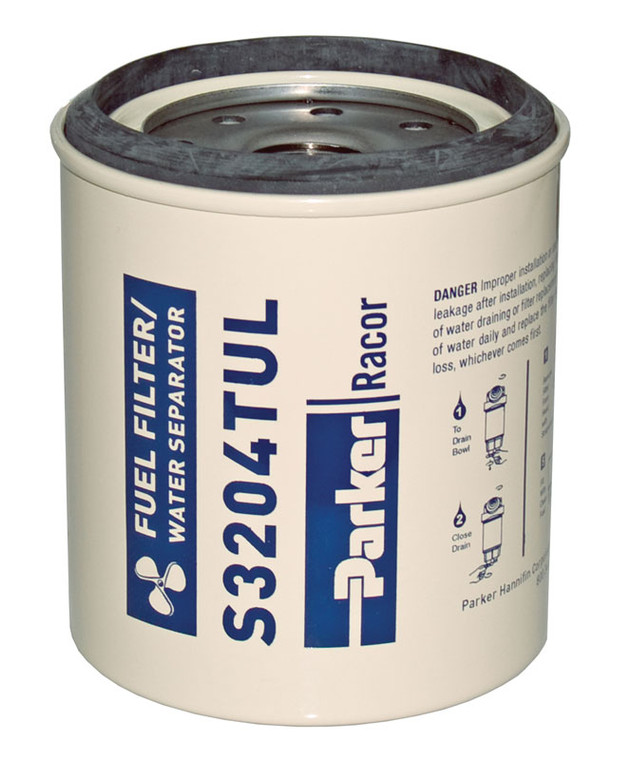

Racor S3204TUL Fuel Filter Water Separator

SKU:
RACS3204TUL
|
MPN
S3204TUL
|
UPC:
706672001443
$36.99 - $421.69
Current Stock:
Adding to cart… The item has been added
Racor S3204TUL Fuel Filter Water Separator.

A 10 micron element from the 445MAM or 320RMAM04 series uses engineered media to increase the dirt holding capacity and extend filter life.

Features:
  • Fits Racor Series - 445MAM or 320RMAM04

  • Fits Racor Bowl - B32001S, RK 30475, RK 30051, RK 30895, RK 30924, RK 30745-01

  • Micron Rating: 10 micron

  • Includes Upper & Lower gasket - 22508

  • Filters diesel fuels

  • Maximum Fow Rate: 45 GPH (170 LPH) - 445MAM

  • Maximum Fow Rate: 40 GPH (151 LPH) - 320RMAM04

  • 99% efficient Aquabloc® water repelling filter media

  • UL listed


  • The lower the micron rating, the finer the filtration. Follow your engine manufacturer's recommendation for fuel filter micron rating.

  • S = Secondary/Final 2 micron (Brown)

  • T = Primary or Secondary/Final 10 micron (Blue)

  • P = Primary 30 micron (Red)
  • Brand Racor
    Cross Reference / Specs AC-DELCO
  • TP1002
  • TP1254
  • TP1290
  • TP1291

  • BALDWIN
  • BF1220
  • BF1214
  • BF984
  • BF1240
  • BF891

  • CARQUEST
  • 86452
  • 86433
  • 86443

  • DONALDSON
  • P555030
  • P558030
  • P558050
  • P559025

  • FLEETGUARD
  • FF196
  • FS1214
  • FS1220
  • FS1244

  • FRAM
  • PS6831
  • PCS5063
  • P1120
  • P1107
  • P9350
  • PS3712

  • GENERAL MOTORS
  • 25011690

  • HASTINGS
  • BF1220
  • FF864

  • KRALINATOR
  • FS243

  • LUBER-FINER
  • LFF8030
  • LFF8050
  • LFF9003
  • LFF903

  • MOTORCRAFT
  • FD 818
  • FD 818-FP

  • NAPA
  • 3452
  • 3443

  • THERMO-KING
  • 11-5947
  • 11-6500
  • 11-6501
  • 11-6502
  • 11-6503
  • 12-5705A
  • 12-5947

  • PUROLATOR
  • F60026
  • F50131
  • F50022

  • WIX
  • 33239
  • 33439
  • 33452
  • 33378



  • Application: Inboard
  • Fits Racor Series: 445MAM or 320RMAM04
  • Replacement Bowl: B32004, RK 30475, RK 30051, RK 30895, RK 30924, RK 30745-01
  • Filters diesel fuel
  • Maximum Flow Rate: 45 GPH (170 LPH) = 445MAM
  • Maximum Flow Rate: 40 GPH (151 LPH) = 320RMAM04
  • Micron Rating: 10
  • Maximum Working Pressure: 15 PSI (1.0 bar)
  • Height: 4 in. (10.2 cm)
  • Diameter: 3.8 in. (9.7 cm)
  • Center Threads: 1"-14
  • Includes Upper & Lower gasket - 22508
  • Water Removal Efficiency: 99%
  • Operating Temperature -40o to +255oF (-40o to 124oC)
  • Max. Fuel Temp.: 190°F (32°C)
  • Prop65
