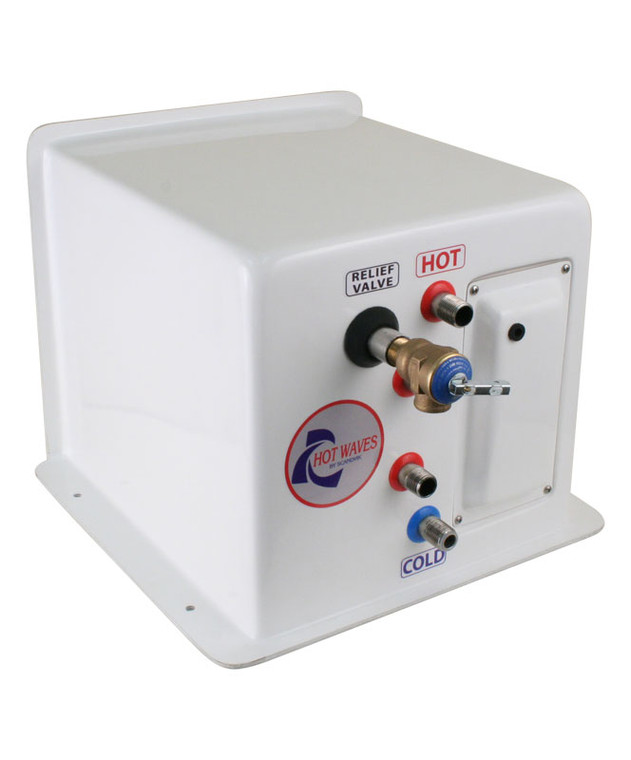

Scandvik 80001 Water Heater 6 gallon, fiberglass outer shell resistant to corrosion in the marine environment and built strong enough to be used as a step, gelcoat color white. 120-Volt, 1500-watt, use a 20-AMP breaker. Dimensions: 15-5/8"-Wide x 12-3/4"-High x 15-5/8"-Deep. Unit Weight 28-lbs. Water connections are 1/2" NPT-Male.
| Brand |
Scandvik Marine Inc. |
| Cross Reference / Specs |
Application:Marine
Capacity:6 gallons
Internal tank material carbon steel hot roll ASTM-A36:Caps and cylinder thickness 2.4mm
Internally Coated: This protection provides a bond with the metal substrates and excellent corrosion protection. Powder coating Dupont, Alesta ELW505S9, in accordance with FDA standards
External cover fiberglass / gelcoat color white: Resistant to corrosion and marine environment / can be
used as step
Polyurethane foam insulation: To reduce heat loss
Inner surface preparation Sand-blasting with metal Particles Type SSPC-10: Clean the inner surface of carbon, oil and corrosion and prepares for implementation of epoxy
Sacrificial magnesium anode: Provides corrosion protection that extends the life of the tank
Inlet / outlet water connections: 1/2†NPT-male
Pressure / temperature safety valve coupling: 1/2†NPT-female
Pressure / temperature safety valve: 210º F and/or 150 psi. Located on the front of the tank the T&P valve is included
Maximum Operating Pressure: 125 psi
Recovery time (?T: 45°F): 25 minutes to raise water temperature 45° F
Threaded heating element: 110 VAC, 1500 W (available in various wattages and voltages)
Ignition protected fixed limit thermostat: Temperature adjustment (Low, Medium, High)
Standard engine heat exchanger formed stainless steel: Continuous 316 SS tubing, no internal joints
UL & CSA Approvals: T&P Valve, Thermostat and Heating Element
USE WITH:
80010 - Heating Element (110 VAC, 1500 W)
80011 - Thermostat
80012 - Anode (Magnesium) on back of tank |
