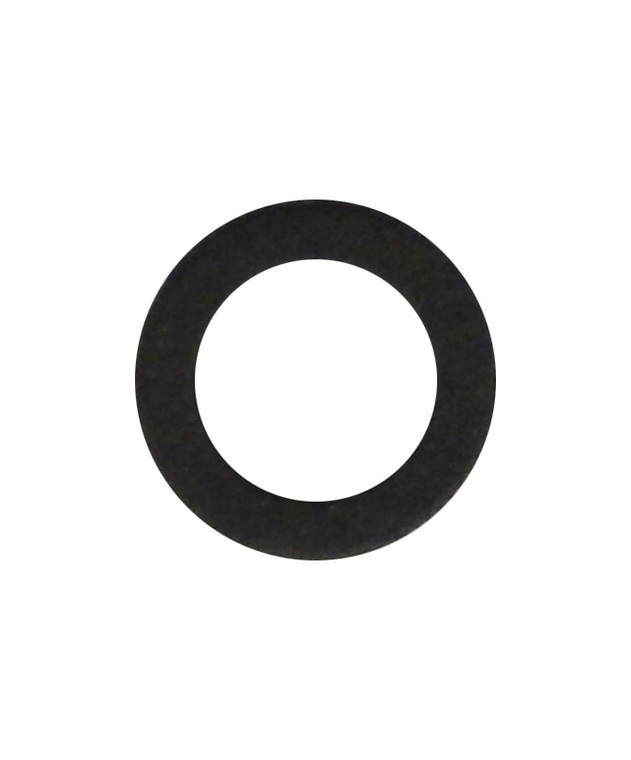

Sierra Marine 18-4698 Drain Fill Washer
Sierra Marine 18-4698 Drain Fill Washer.
Used on lower unit drain and oil level screws for all Yamaha outboard models
Features:
NOTICE: Excessive torque and/or lack of oil on the threads and gasket surfaces could damage the gasket, resulting in an oil leak and/or water entering the lower unit.
Used on lower unit drain and oil level screws for all Yamaha outboard models
Features:
- Sold Individually
- Apply clean oil to the screw threads and both gasket surfaces. Install the drain or oil level screw
- Tighten just until seated and then turn the screw an additional 45 degrees to achieve the proper torque or tighten to 7 ± 1 Nm (0.7 ± 0.1 m-kgf, 5.2 ± 0.7 lb-ft)
IMPORTANT: These new-type black gaskets have a different installation and torque procedure than the previous type:
NOTICE: Excessive torque and/or lack of oil on the threads and gasket surfaces could damage the gasket, resulting in an oil leak and/or water entering the lower unit.
| Brand | Sierra |
|---|---|
| Cross Reference / Specs | MALLORY MARINE
MERCURY MARINE YAMAHA MARINE RECMAR GLM ENGINEERED MARINE PRODUCTS USE WITH: |
